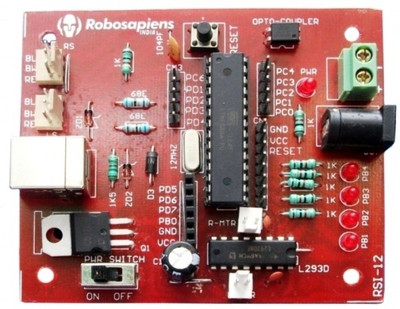

Robomart At Mega8 Mini Ics Development Board V 2.0

Atmega8 mini Dev Board V2 is a complete starter kit and development system for the AVR Atmega8 microcontrollers from ATMEL ? Corporation. It is designed to give designers a quick start to develop code on the AVR.The ATmega8 development kit is based on our 28 pin development board which is compatible with many of the Atmel AVR microcontrollers. In some ways the kit is similar to an Arduino but with loads more flexibly. This kit is an easy and low cost way to get started with microcontrollers. Included on board is an Atmega8 microcontroller, external crystal with supporting capacitors, AVCC filter parts, a USB B type Connector , Power supply parts and more. The Controller used is an 8-bit microcontroller with 8KB of flash, 1KB of RAM and 512 bytes of EEPROM. It has 23 I/O lines, 3 PWM channels and a 6 channel 10-bit AD Converter. It sports dual 8-bit Timers each having separate prescalers and compare modes. Additionally it has a single 16-bit timer with a separate prescaler, compare and capture mode. The Atmega8A is a feature packed and very versatile microcontroller. The controller comes with Inbuilt Robosapiens BootLoader that makes it easily programmable and we do not need any prerequisite drivers for the board. The board takes Input which can be either Analog or Digital in nature. On board we have PIN extensions of all the parallel I/O line available with the micro controller to make the peripherals plug n play. The board comes with inbuilt DTMF decoder IC module add-on Shield. When it comes to the sensors interfacing, the board is compatible with all the Digital / Analog sensor modules. For better interaction with the user the board comes with prefabricated 4 Bit LED for quick monitoring of I/O Port Outputs.
